| 프레임 |
크로노 29 스텔스 풀 카본, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design |
| 사이즈 |
S: 395mm / M: 430mm / L: 470mm / XL: 520mm |
| 포크 |
락색 주디 Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload |
| 헤드 세트 |
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45° |
| 핸들 스템 |
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm |
| 핸들 바 |
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm barbore |
| 핸들 그립 |
Onoff Diamond, 1lock-on, 135mm |
| 시트 포스트 |
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
| 안장 |
몬드레커 XC Series, steel rail |
| 브레이크(프론트,리어) |
스램 레벨 T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| 브레이크 레버 |
스램 레벨 , tooled reach adjust, lever pivot bushings |
| 림 |
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| 스포크 |
CN round stainless steel |
| 허브(프론트) |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| 허브(리어) |
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
| 타이어(프론트,리어) |
맥시스 이콘 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead |
| 크랭크 세트 |
스램 SX 이글, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| 체인링 |
34T, steel, X-Sync 2 |
| BB |
스램 DUB BSA, sealed bearings, 73mm |
| 체인 |
스램 SX 이글, 12s, Powerlock |
| 드레일러(리어) |
스램 NX 이글, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| 시프트 레버 |
스램 Trigger SX Eagle, 12s, X-Actuation 1:1 |
| 카세트 |
스램 XG-1230, 11-50T, 12s |
| 행거앤드 |
몬드레커 M068 |
| 무게 |
11.3 kg |

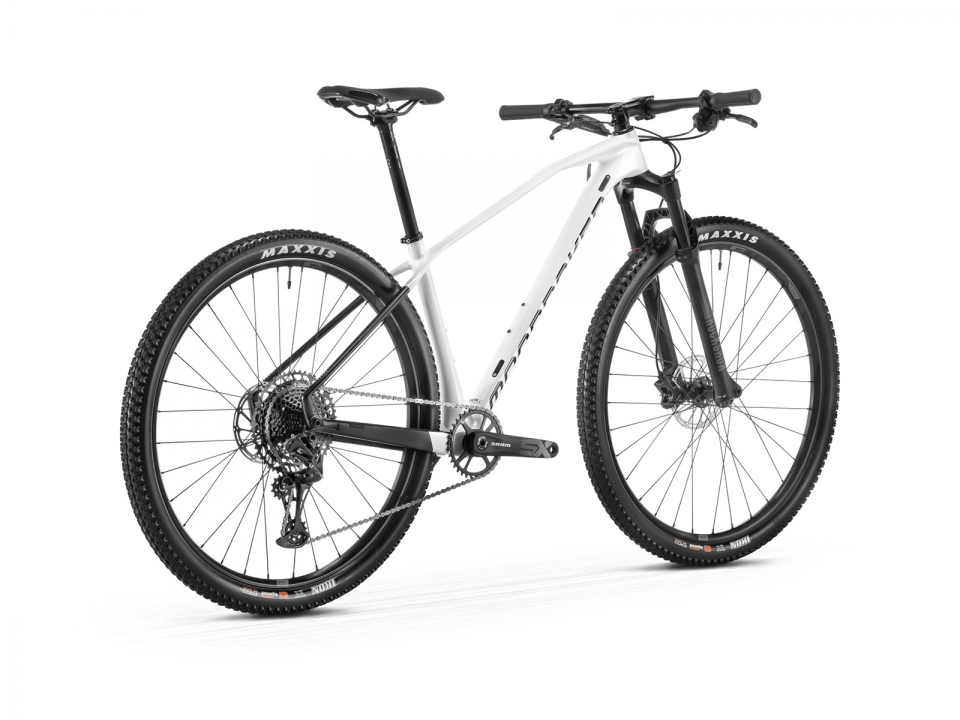

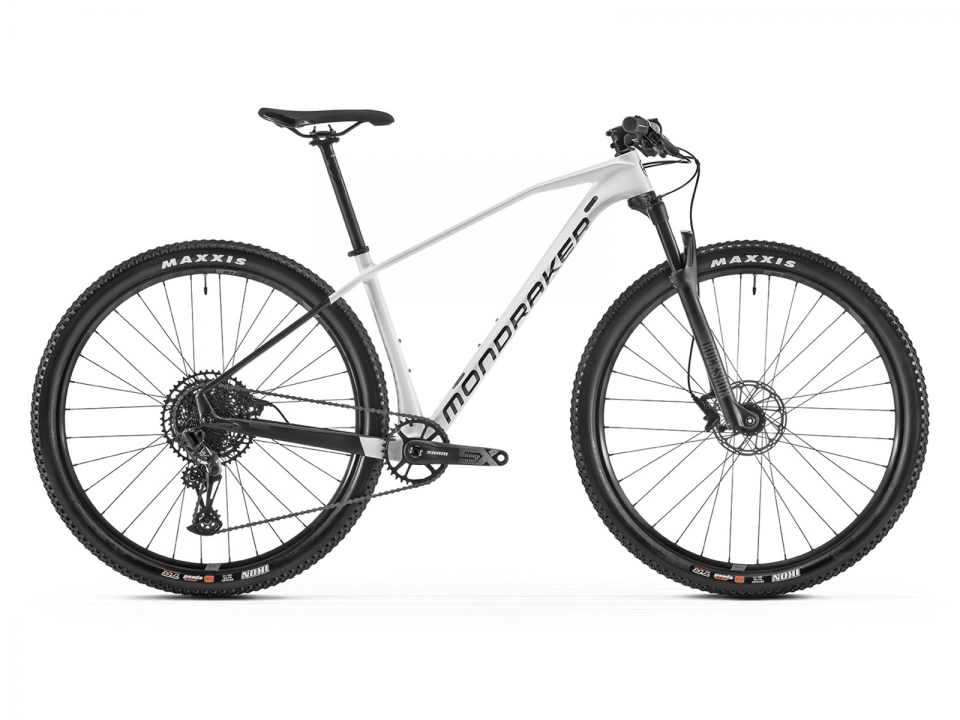

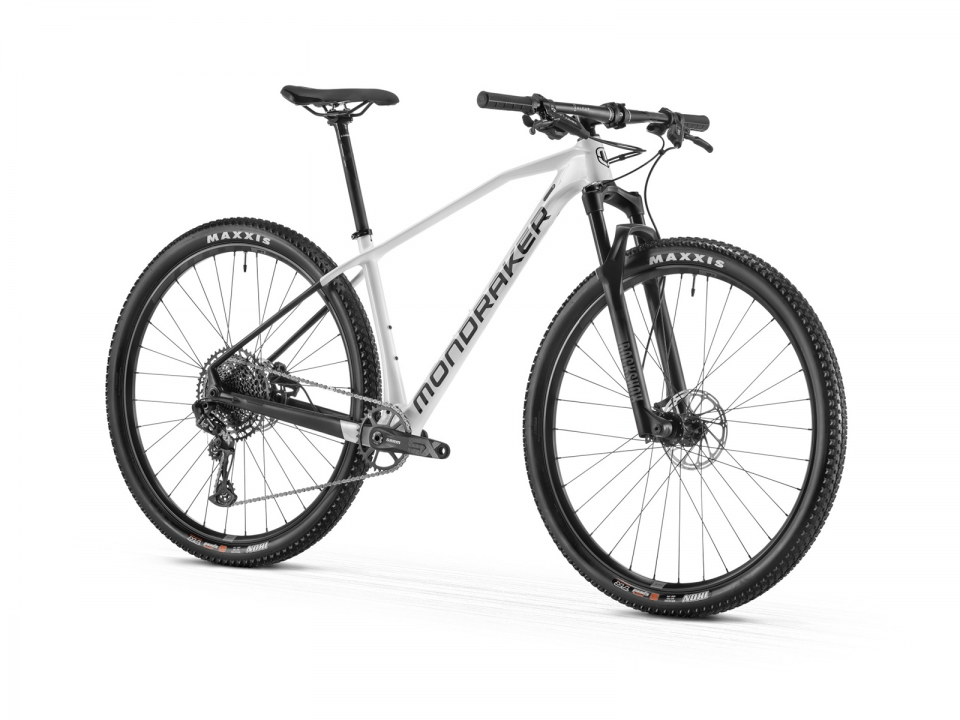

Dirty White-Carbon
Dirty White-Carbon
Dirty White-Carbon
