| Frame |
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable |
| Rear shock |
Fox Float DPX2 LV EVOL Factory Kashima, 205x65mm. Settings: compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Shock settings |
CEC001 compression, Medium rebound, 0.2 volume spacer |
| Fork |
Fox 38 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips |
Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL |
| Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Saddle |
SDG BEL-AIR 3.0, EVA foam, Alloy rails |
| Front brake |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear brake |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake lever |
Sram Code R, tool-free reach adjust |
| Rims |
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Spokes |
DT Hybrid SP, straightpull |
| Front hub |
DT 370, Boost 15x110mm, IS 6 bolts |
| Rear hub |
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts |
| Front tire |
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear tire |
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Crankset |
Race Face Aeffect ebike, 165mm |
| Rings |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain |
Sram NX Eagle, 12s, Powerlock |
| Rear derrailleur |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift levers |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Casette |
Sram XG-1230, 11-50T, 12s |
| Derailleur hanger |
Mondraker M068 |
| Sizes |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| Weight |
24.6 kg |
| Display |
(변경) Bosch Kiox -> Bosch Purion |
| Motor |
Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery |
Bosch Powertube 625Wh |

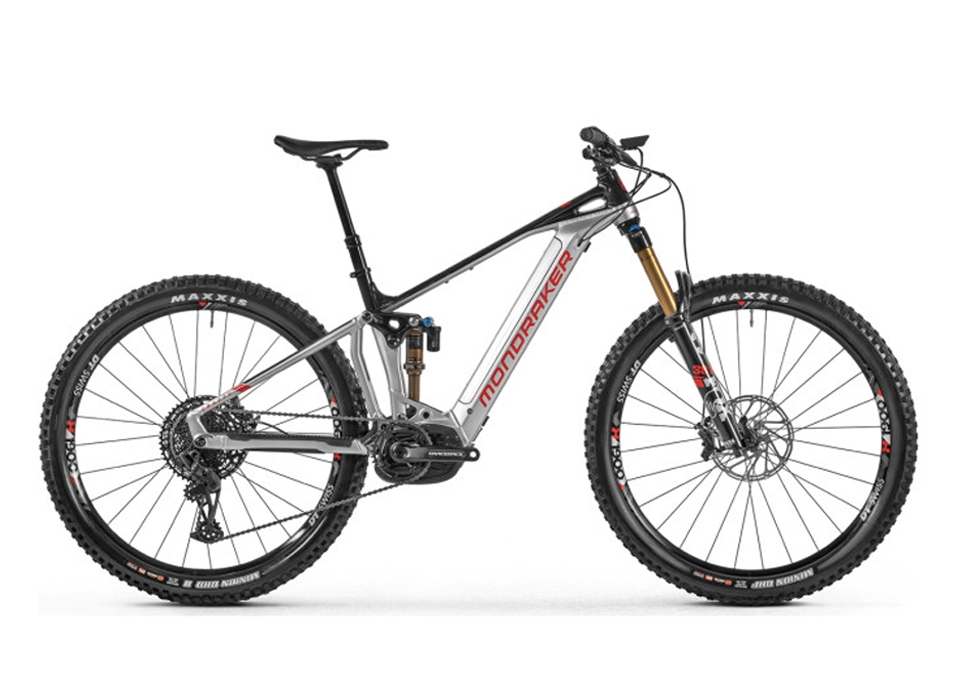

BLACK / RACING SILVER
