| 프레임 |

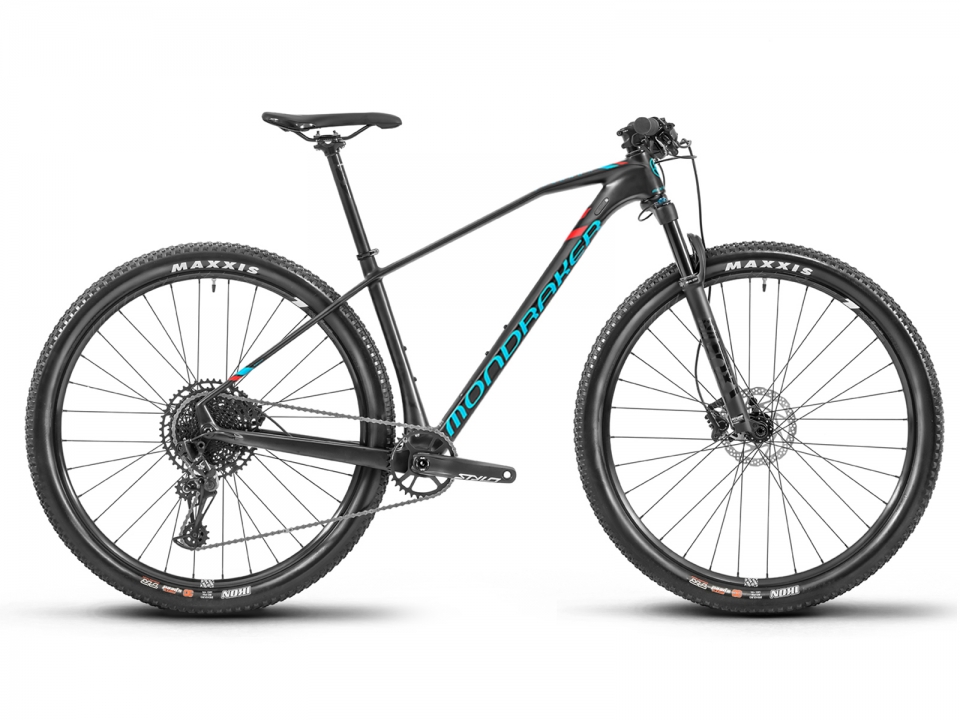

Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axel, Comfort Flat chainstays (Flatstays) design |
| 헤드셋 |
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| 앞포크 |
Fox 32 29 Float GRIP EVOL Rhythm, 100mm, tapered steerer tube,15x110mm axle, remote lockout, offset 44mm. Settings: lockout, rebound, air preload |
| 핸들스템 |
Mondraker, 6061 T6 Alloy, 31.8mm barbore, rise: -5º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm |
| 핸들바 |
Onoff Notion 0.2, double butted 6061 alloy, rise: 4.8mm, width: 720mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| 그립 |
Onoff Diamond, 1lock-on, 130mm |
| 시트포스트 |
Onoff Notion 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| 안장 |
Mondraker Chrono Carbon design |
| 앞 브레이크 |
Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads |
| 뒤 브레이크 |
Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads |
| 브레이크 레버 |
Shimano MT501, servo wave, alloy lever |
| 시프터 레버 |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| 뒤 변속기 |
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1 |
| 버텀브라켓 |
Sram DUB BSA, sealed bearings, 73mm |
| 크랭크 |
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| 체인링 |
34T, steel, X-SYNC 2 |
| 스프라켓 |
Sram PG-1230, 11-50T, 12s |
| 체인 |
Sram NX Eagle, 12s |
| 림 |
MDK-XP1 29 TLR, 23mm internal width, tubeless ready, 32 spokes |
| 스포크 |
CN round stainless steel |
| 앞 허브 |
MDK DC511 15x110mm, cup & cone ball bearings, IS 6 bolts |
| 뒤 허브 |
MDK GW 12x148mm, sealed bearings, IS 6 bolts |
| 타이어 |
Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead |
| 행거앤드 |
Mondraker M068 |
| 무게 |
10.7 Kg |
| 페달 |
미포함 |
