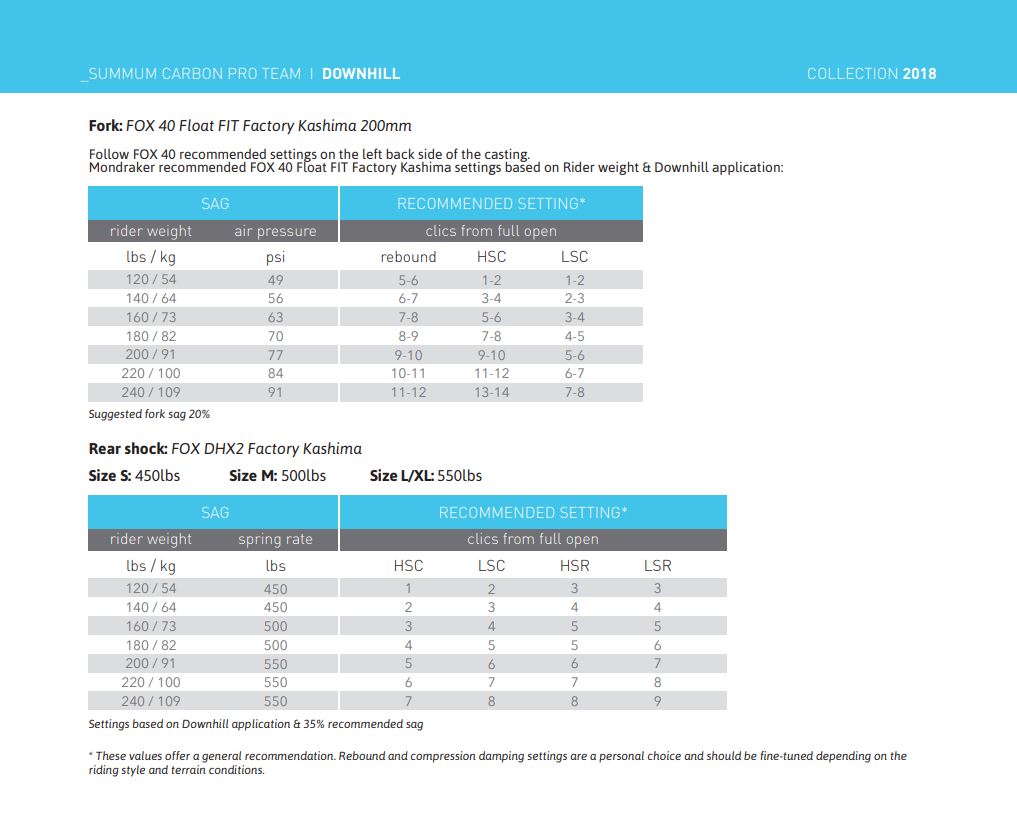

* 서스펜션 세팅 참고 자료

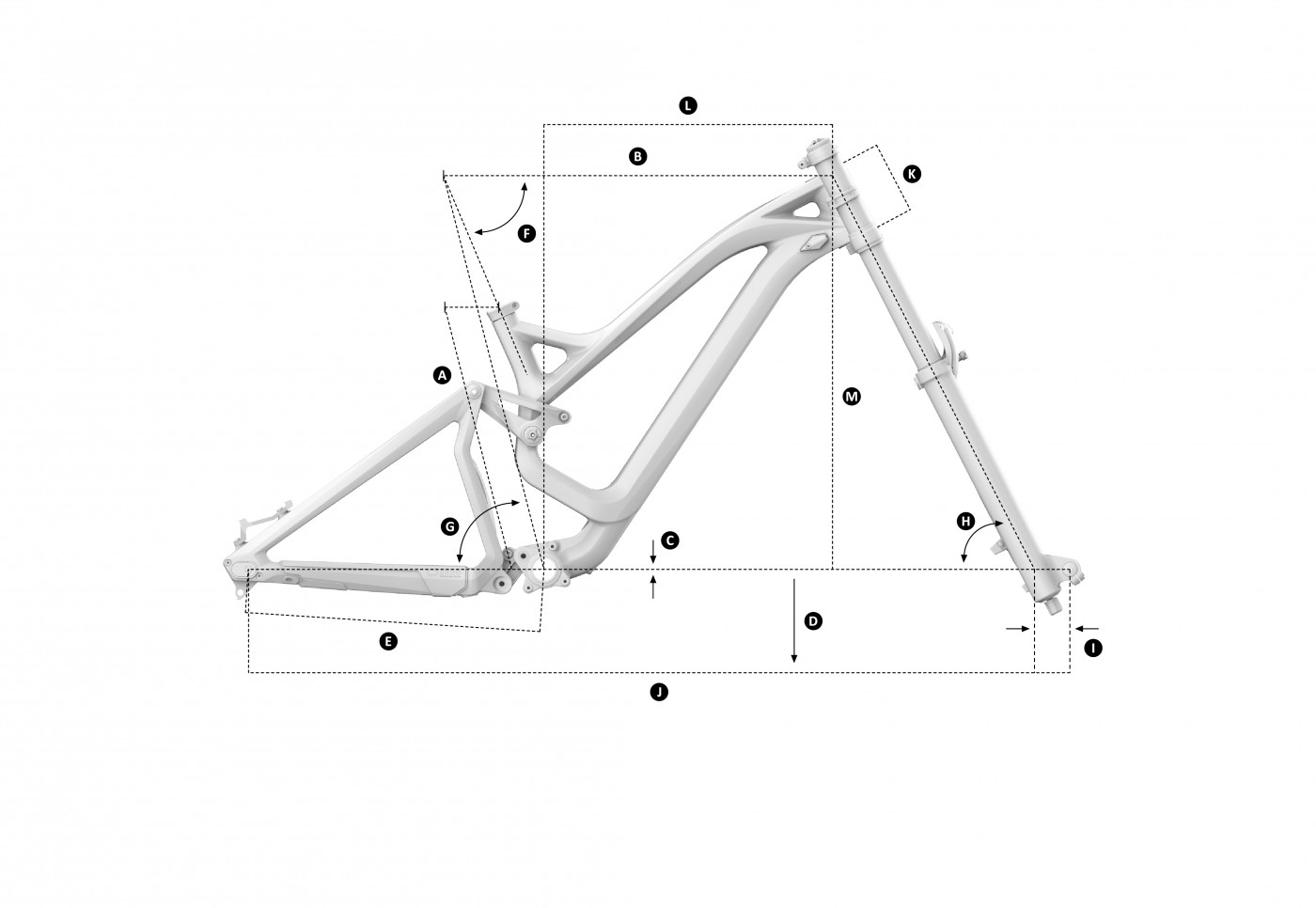

| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seat Tube Lenght | 400mm | 400mm | 400mm | 400mm |
| B | Top Tube Lenght | 575mm | 600mm | 622mm | 647mm |
| C | Bottom Bracket Drop | 0mm | 0mm | 0mm | 0mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Lenght | 445-460mm | 445-460mm | 445-460mm | 445-460mm |
| F | Seat Tube Angle, Actual | 65° | 65° | 65° | 65° |
| G | Seat Tube Angle, Effective | 73.5° | 73.5° | 73.5° | 73.5° |
| H | Head Tube Angle | 63°(+/-2°) | 63°(+/-2°) | 63°(+/-2°) | 63°(+/-2°) |
| I | Fork Offset | 52mm | 52mm | 52mm | 52mm |
| J | Wheelbase | 1200mm | 1225mm | 1250mm | 1280mm |
| K | Head Tube Lenght | 112mm | 112mm | 122mm | 122mm |
| L | Reach | 397mm | 422mm | 442mm | 468mm |
| M | Stack | 597mm | 597mm | 606mm | 606mm |

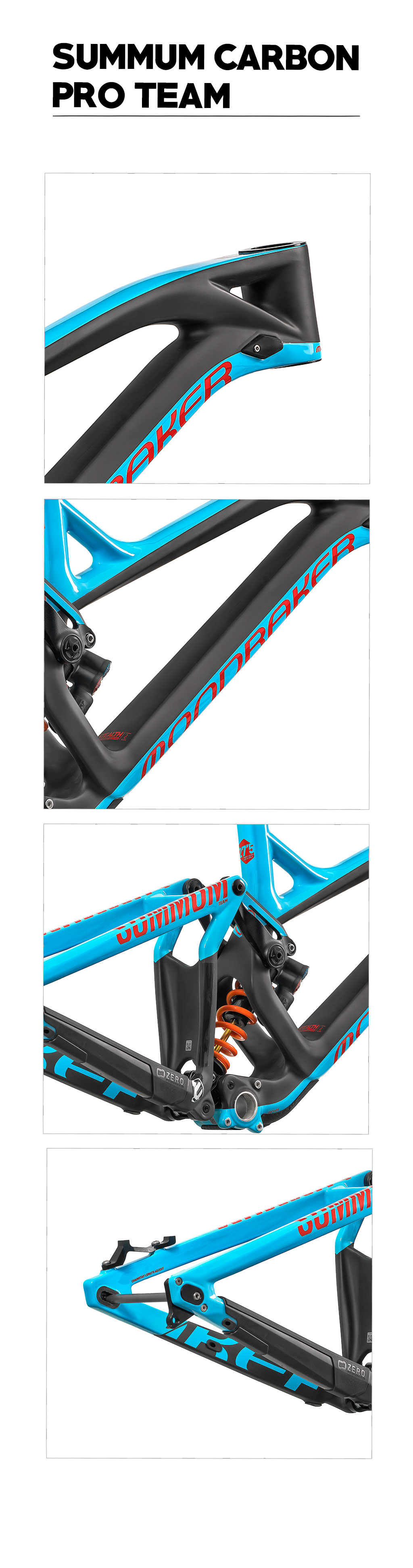

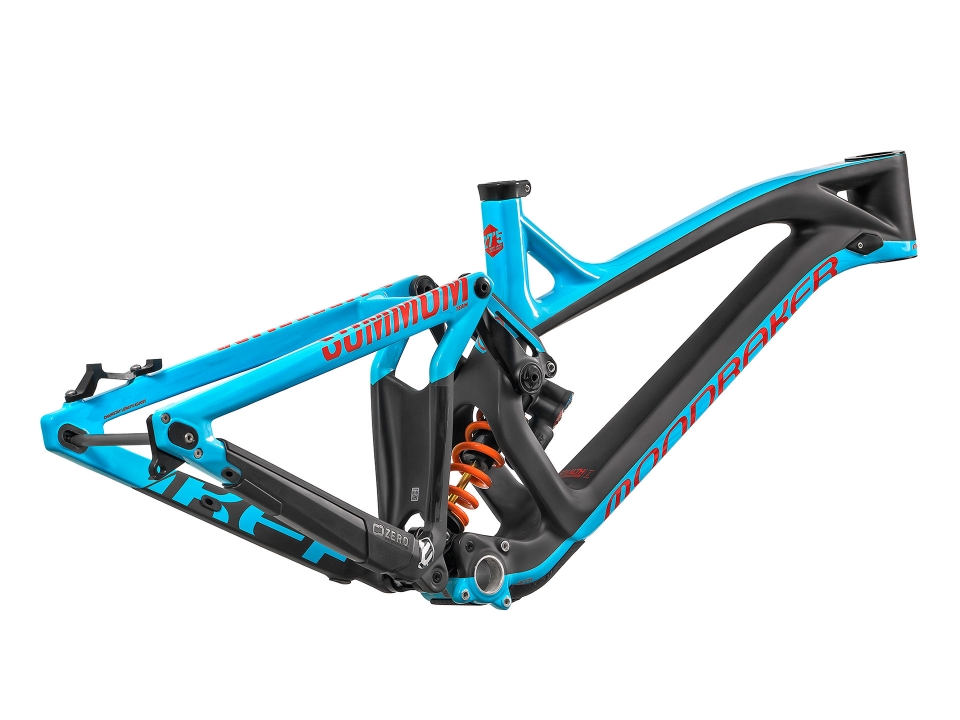

| 프레임 | Summum 27´5 Stealth full Carbon, Zero suspension system, 205mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x150mm rear axle, 83mm BSA bottom bracket, MAX. capacity sealed bearings, internal cable routing, ISCG 05. *Geometry ki |
|---|---|
| 리어샥 | Fox DHX2 Factory Kashima, 222x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring |
| 샥 셋팅 | Firm compression, light rebound. Spring rate: S size 450 lbs, M size 500 lbs, L/XL size 550 lbs |
| 헤드셋 | Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm |
| 행거앤드 | Mondraker M063 |
